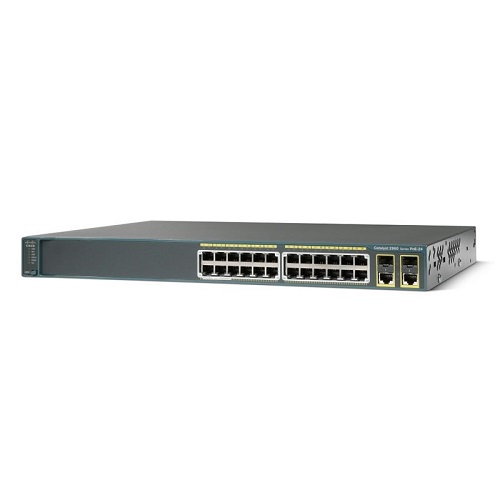

Cisco Catalyst 2960-X 24 GigE, 4 x 1G SFP, LAN Base(DT)
Cisco Catalyst 2960-X 24 GigE, 4 x 1G SFP, LAN Base(DT)
NGN603,238.40
Availability:
In stock
Out of stock
SKU
DELUXE-V1550832495
Cisco
Computing
Accessories
IT Accessories
Add to Wishlist
Compare
Weight
5 kg

Product Description

Switch type  What switch device has, managed or unmanaged. Managed
Switch layer  A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). L2
Quality of Service (QoS) support Yes
Multicast support Yes
Web-based management  Using a website/web application to manage something. Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity  The number of basic switching RJ-45 Ethernet ports (sockets). 24
Basic switching RJ-45 Ethernet ports type  The type/category of basic switching RJ-45 Ethernet ports (sockets). Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity 2
Console port RJ-45
USB 2.0 ports quantity  Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. 2
Networking
Networking standards  The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Full duplex  A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. Yes
Link aggregation Yes
Broadcast storm control Yes
Rate limiting Yes
DHCP server  A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one. Yes
Spanning tree protocol Yes
IGMP snooping Yes
Auto MDI/MDI-X  A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. Yes
10G support  The product can use Oracle 10G, which is a database management system introduced in 2003. Yes
VLAN support  A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. Yes
Data transmission
Switching capacity  The data transfer capacity of the switch per second. 216  Gbit/s
Number of VLANs 1023
Jumbo frames support Yes
Security
Access Control List (ACL) Yes
SSH/SSL support Yes
Design
Rack mounting  The type of mounting that can position devices in a shelving system (rack). Yes
Colour of product  The colour e.g. red, blue, green, black, white. Black
LED indicators Yes
Safety  List of regulatory safety standards for all countries in which this product has been certified. UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
Performance
Stackable  Devices can be placed on top of each other. Yes
Built-in processor APM86392
Processor frequency  The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time. 600  MHz
Noise level  The amplitude level of the undesired background noise, usually measured in decibels (db). 57  dB
Internal memory  The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. 512  MB
Memory type  Type of memory in the device e.g. DDR3, SRAM (Static RAM). DRAM
Flash memory 128  MB
Mean time between failures (MTBF)  Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. 325780  h
Power
AC input voltage  The voltage of the AC electricity that is inpitted into the product. 100-240  V
AC input frequency 50/60  Hz
Power consumption (typical)  Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. 52.3  W
Number of power supply units 1
Redundant power supply (RPS) support  Additional power supply which can run a computer if the main power supply fails. Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)  The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. Yes
Power over Ethernet (PoE) ports quantity 24
Total Power over Ethernet (PoE) budget 370  W
Operational conditions
Operating temperature (T-T)  The minimum and maximum temperatures at which the product can be safely operated. -5 - 40  °C
Storage temperature (T-T)  The minimum and maximum temperatures at which the product can be safely stored. -25 - 70  °C
Operating relative humidity (H-H) 10 - 95  %
Storage relative humidity (H-H) 10 - 95  %
Operating altitude 0 - 3000  m
Non-operating altitude 0 - 4000  m
Weight & dimensions
Width  The measurement or extent of something from side to side. 445  mm
Depth  The distance from the front to the back of something. 368  mm
Height  The measurement of the product from head to foot or from base to top. 45  mm
Weight  Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. 5700  g
Other features
Power LED Yes
