Canon Copier | Canon IR 2645i DADF Printer Copier With Plain Pedestal R1 - deluxe.com.ng

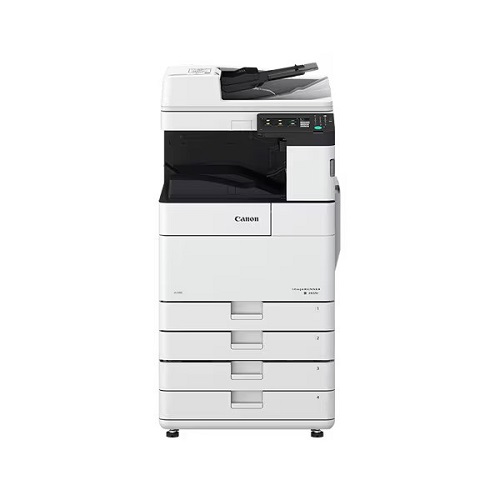

Canon Copier | Canon IR 2645i DADF Printer Copier With Plain Pedestal R1
NGN2,494,633.00
Availability:
In stock
Out of stock
SKU
deluxe----1653737221
Brand
Weight
40 kg

Product Description

Machine Type

A3 Monochrome Laser Multifunctional

Core Functions

Print, Copy, Scan, Send and Optional Fax

Control Panel

Standard: 7 inch TFT LCD WVGA Colour Touch panel

Memory

Standard: 2.0GB RAM

Storage

eMMC Standard: 30GB

Paper Supply Capacity (A4, 80gsm)

Standard: 1,200 sheets

Maximum: 2,300 sheets (with Cassette Feeding Unit-AN1)

Paper Output Capacity (A4, 80 gsm)

Standard: 250 sheets

Maximum: 545 sheets (with Inner Finisher-J1)

Supported Media Sizes

Upper Cassette 1:

Standard size: A4, A4R, A5R, B4, B5, B5R

Custom size: Min. 139.7 x 182.0 mm up to 297.0 x 390.0 mm



Lower Cassette 2:

Standard size: A3, A4, A4R, A5R, B4, B5, B5R

Custom size: Min. 139.7 x 182.0 mm up to 297.0 x 431.8 mm



Multi-purpose tray:

Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, Envelopes [No. 10(COM 10), Monarch, ISO-C5, DL]

Custom Size/Free Size: Min. 98.0 x 148.0 to 297.0 x 431.8 mm

Supported Media Weights

Paper Cassettes (1/2): 60 to 128 gsm

Multi-purpose tray: 52 to 220 gsm (Thin: vertical grain paper feed only: 52 to 59 gsm)

Duplex: 60 to105 gsm

Warm-up Time

(Quick start mode:ON)

12 seconds or less*1

From Sleep Mode: 10 seconds or less

4 Seconds or less*2

Dimensions (W x D x H)

iR 2645i/2635i: 586 x 709 x 926 mm (with DADF-BA1)*3

iR 2630i/2625i: 586 x 713 x 912 mm (with DADF-AZ1)*3

iR 2625i: 586 x 700 x 818 mm (with Platen Cover type Z)*3

Installation Space (W x D)

iR 2645i/2635i: 1363 x 1269 mm (with DADF-BA1)*4

iR 2630i/2625i: 1363 x 1273 mm (with DADF-AZ1)*4

iR 2625i: 1363 x 1260 mm (with Platen Cover type Z)*4

Weight

Standard:

iR 2645i/2635i:Approx. 68.3 kg without toner

iR 2630i/2625i:Approx. 66.8 kg without toner

Print

Print Speed (ppm)

iR 2645i:

45 ppm (A4), 22 ppm (A3)

iR 2635i:

35 ppm (A4), 22 ppm (A3)

iR 2630i:

30 ppm (A4), 15 ppm (A3)

iR 2625i:

25 ppm (A4), 15 ppm (A3)

Print Resolution (dpi)

1,200 x 1,200

Page Description Languages

Standard: UFR II, PCL 6

Optional: Genuine Adobe PostScript 3

Fonts

PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*5 (Japanese, Korean, Simplified and Traditional Chinese) , Barcode fonts*6

PS fonts: 136 Roman

Operating System

UFRII: Windows® 7/8.1/10/Server 2008 /Server 2008 R2/Server 2012/Server 2012 R2/Server 2016/Server 2019, MAC OS X (10.9 or later)

PCL: Windows® 7/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016/Server 2019

PS: Windows® 7/8.1/10/Server 2008/Server 2008 R2/ Server 2012/Server 2012 R2/Server 2016/Server 2019, MAC OS X (10.9 or later)

PPD: Windows® 7/8.1/10, MAC OS X (10.9 or later)

Copy

Scan

Selectable Type

iR2645i/2635i: Optional Document Feeder(DADF-BA1) or Platen Cover Type Y

iR2630i/2625i: Optional Document Feeder(DADF-AZ1) or Platen Cover Type Z

Document Feeder Paper Capacity (80 gsm)

DADF-BA1: 100 Sheets

DADF-AZ1: 50 Sheets

Acceptable Originals and Weights

Platen (DADF-BA1):

Sheet, Book, 3-Dimensional Objects

Platen (DADF-AZ1):

Sheet, Book




Document Feeder media weight:

DADF-BA1:

1-sided scanning: 38 to 128 gsm (BW), 64 to 128 gsm (CL)*7

2-sided scanning: 50 to 128 gsm (BW), 64 to 128 gsm (CL)



DADF-AZ1:

1-sided scanning: 38 to 128 gsm (BW/CL)

2-sided scanning: 38 to 128 gsm (BW/CL)*8

Supported Media Sizes

Platen: Max. scanning size: 297.0 x 431.8 mm

Document Feeder media size:

DADF-BA1: A3, A4, A4R, A5, A5R, B5, B5R, B6, B4R

Custom size: 128.0 x 139.7 mm to 297.0 x 431.8 mm

DADF-AZ1:

A3, A4, A4R, A5, A5R, B5, B5R, B4R

Custom size: 128.0 x 148.0 mm to 297.0 x 431.8 mm

Scan Speed (ipm: BW/CL; A4)

DADF-BA1:

1-sided Scanning: 55/55 (BW/CL; 300 dpi), 45 (BW; 600 dpi)

2-sided Scanning: 27.5/27.5 ((BW/CL; 300 dpi), 22.5 (BW; 600 dpi)



DADF-AZ1:

1-sided Scanning:35/25 (BW/CL; 300 dpi), 25 (BW; 600 dpi)

2-sided Scanning:12/8 (BW/CL; 300 dpi), 8 (BW; 600 dpi)

Scan Resolution (dpi)

Copy: 600 x 600

Send: (Push) up to 600 x 600, (Pull) up to 600 x 600

Fax: up to 600 x 600

Pull Scan Specifications

Colour Network ScanGear2. For both TWAIN and WIA

Supported OS: Windows® 7/8.1/10

Windows® Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016

Scan Method

Send functionality available on all models

Scan to USB Memory Key: Available on all models

Scan to Mobile Devices and cloud-based services: A range of solutions is available to provide scanning to mobile devices or cloud-based services depending on your requirements. Please contact your sales representative for further information.

TWAIN/WIA Pull scanning available on all models

Send

Fax

Optional / Standard

Optional on all models

Maximum Number of Connection Lines

1

Modem Speed

Super G3: 33.6 kbps

G3: 14.4 kbps

Compression Method

MH, MR, MMR, JBIG

Resolution (dpi)

400 x 400 (Ultrafine), 200 x 400 (Superfine), 200 x 200 (Fine/Photo), 200 x 100 (Normal)

Sending / Recording Size

A3, A4, A4R, A5*10, A5R*10, B4, B5*11, B5R*10

FAX / Memory

Up to 30,000 pages

Speed Dials

Max. 200

Group Dials / Destinations

Max. 199 dials

Sequential Broadcast

Max. 256 addresses

Memory Backup

Yes

Store

Memory Media

Standard: USB Memory

Security

Authentication

Standard: uniFLOW Online Express, User Authentication, Department ID Authentication, Access Management System, Picture Login

Optional: My Print Anywhere secure print (Requires uniFLOW)

Network

Standard: IP/Mac Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP, S/MIME

Document

Standard: Secure Print, Encrypted PDF, Encrypted Secure Print, Device signature

Optional: User signature

Environmental

Operating Environment

Temperature: 10 to 30 ºC (50 to 86 ºF)

Humidity: 20 to 80 % RH (Relative Humidity)

Power Source

220-240 V , 50/60 Hz , 5.2 Amp

Power Consumption

Maximum: Approx. 1500W

Standby: Approx. 20W

Sleep mode: Approx. 0.6 W

Consumables

Paper Supply Options

Output options

Hardware Accessories

System and Controller options

Other Options



  1. Time from device power-on, until copy ready (not print reservation).
  2. Time from device power-on to when key operations can be performed on the touch panel display.
  3. With the multi purpose tray extended.
  4. With Cassette open + 100 mm gap around the main body.
  5. Requires optional PCL International Font Set-A1.
  6. Requires optional Barcode Printing Kit-D1.
  7. Only 1-sheet feeding is supported in 38-42 gsm. (Feeding is guaranteed but geometric distortion correction is not guaranteed.)
  8. Only 1-sheet feeding is supported in 38-52 and 105-128 gsm. (Feeding is guaranteed but geometric distortion correction is not guaranteed.)
  9. Single page only.
  10. Sent as A4.
  11. Sent as B4.
  12. With 81.4 gsm paper.
