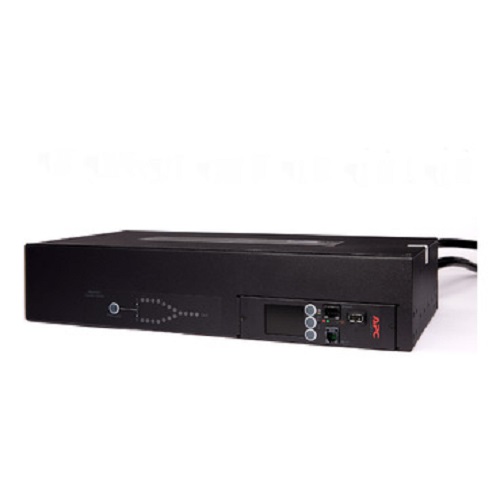

APC Rack ATS, 230V, 32A, IEC 309 in, (16) C13 (2) C19 out AP4424 (CC)

NGN3,135,949.56

Availability:

In stock

Out of stock

SKU

DELUXE-V1565259142

Brand

APC

Product Description

Rack ATS, 230V, 32A, IEC 309 in, (16) C13 (2) C19 out

Provides redundant rack mount power to single-corded equipment.

Includes: Rack Mounting brackets, RS-232 configuration cable, Serial configuration cable

10 kAIC Overcurrent Protection

Provides protection in the event of a significant overcurrent event.
Command line interface

Offers simultaneous remote management access through Telnet and SSH
Current Monitoring

Monitors the aggregate current draw per power distribution unit.
Cyber security

A cyber-secure connection provides improved security for your infrastructure devices, and machine data forms the basis of operational insights and analytics, aimed at reducing equipment maintenance costs.
Local Current Monitoring Display

The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)
Quick Transfer Rate

Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
Remote Management Capabilities

Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
RoHS

Certifies that electronic devices don't contain hazardous metals and flame retardants
StruxureWare Data Center Expert compatible

Enables centralized management via StruxureWare Data Center Expert.

Rack-mount Transfer Switches Features & Benefits

Transfer time <10ms

Industry leading transfer time to ensure seamless ride through in the event of a primary power source failure.

Dual Input Power Sources

Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternative power source.

Wide range of input and output connections

Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

10 kAIC Overcurrent Protection

Provides protection in the event of a significant overcurrent event.

Network Management Capabilities

Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Color LCD display

Provides more robust and intuitive local control and manageability.

Dual Input Power Sources

Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternative power source.

Information Displays

Indicates the status of the AC sources powering the units, as well as indicates which source is set as the primary source and which source is currently supplying power to the load. This provides a visual depiction of the power flow from the input to the load. This allows the user to quickly glance at the power flow and status of the input sources without connecting to the unit.

Rack-Mountable

Occupys only 1U of valuable rack space. Puts the power where it is needed most - in the rack near the equipment.

Nominal Output Voltage

230V

Overload Protection

Yes

Maximum Total Current Draw

Output Connections

(16) IEC 320 C13 (Battery Backup)

(2) IEC 320 C19 (Battery Backup)

Nominal Input Voltage

230V
