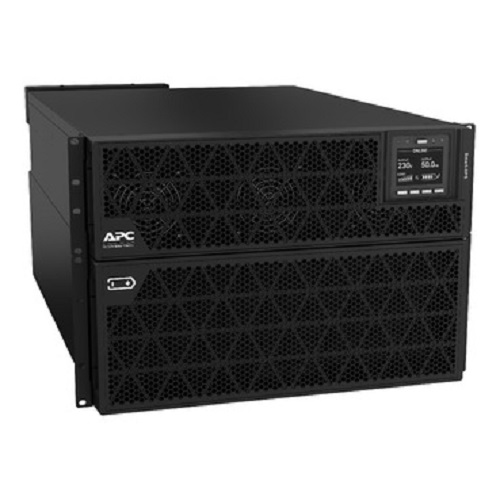

APC SRTG20KXLI Image APC APC Brand Image APC APC Brand Image APC APC Brand Image APC APC Brand Image + 5 + 5 APC Smart-UPS On-Line, 20kVA/20kW, Rack/Tower, 230V/380V...415V, Hard wire 5-wire(3P+N+E)+3-wire(1P+N+E), Network Card, W/O rail kit - SRTG20KXLI
NGN18,673,177.13
Availability:
In stock
Out of stock
SKU
deluxe----1709657316
Brand
Weight
130 kg

Product Description

Lead time Usually in Stock
Main

Run time for load

W

information_stroke

Min-max: 2000-20000 W

3min 1s

Max. Capacity Used

information_stroke

100 %

Main Input Voltage 380...415 V 3 phases
230 V
Other Input Voltage 220...240 V
Main Output Voltage 380...415 V 3 phases
230 V 1 phase
Other Output Voltage 230 V
Rated power in W 20000 W
Rated power in VA 20000 VA
Output connector type Hard wire 5 wire (3P + N + E) 1
Hard wire 3-wire (1P + N + E) 1
IEC connector 3-wire (1P + N + E) 1
Number of rack unit 7U
Provided equipment 1 x USB cable
1 x rack mounting brackets
1 x stabilization/wall mounting feet
1 x installation manual
Batteries & Runtime
Run Time View Runtime Graph

action_new_window

Efficiency View Efficiency Graph

action_new_window

Battery type Lead-acid battery
Number of battery filled slots 0
Number of battery free slots 0
Battery recharge time 4 h
Number of battery replacement quantity 2
Battery voltage +/- 192 V
Battery charger power 2160 W rated
Battery life 3…5 year(s)
Replacement battery APCRBC172

action_new_window

Extended runtime 1
General
UPS type Double conversion online
Number of power module free slots 0
Number of power module filled slots 0
Redundant No
Physical
Colour Black (RAL 9005)
height 30.6 cm
Width 44.0 cm
Depth 70.0 cm
Net weight 142.5 kg
Mounting location Front
Mounting preference Lower
Mounting mode Rack-mounted
Two post mountable 0
USB compatible Yes
Mounting position Horizontal
Input
Network frequency 40...70 Hz auto-sensing
Number of input connectors 1 hard wire 5 wire (3P + N + E)
1 hard wire 3-wire (1P + N + E)
Input voltage limits 160...285 V full load
380 V 380...415 V
Maximum input current 87 A
Switching current capacity 125 A
Input harmonic distortion Less than 5 % for full load
Input current 87 A
Load power factor From 0.9 leading to 1 lagging
Output
Maximum configurable power in VA 20000 VA
Maximum configurable power in W 20000 W
Output frequency 50/60 Hz +/- 4 Hz sync to mains
Wave type Sine wave
Output overload operation 60 seconds at 125% and 30 seconds at 150%
Efficiency 94 %
Harmonic distortion Less than 5 %
Crest factor 3 : 1
Bypass type Internal bypass (automatic and manual)
Additional information Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage
Conformance
product certifications CE
UKCA
TISI
Standards EN/IEC 62040-1:2019/A11:2021
EN/IEC 60204-2
Environmental
ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0...3000 m
Ambient air temperature for storage -15…45 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0…15000 m
Acoustic level 58 dBA
heat dissipation 3821 Btu/h
IP degree of protection IP20
Communications & Management
Free slots 0
Preinstalled device Network management card 3 with environmental monitoring
Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency power off Yes
Surge Protection and Filtering
Surge energy rate 600 J
Noise suppression Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 53.5 cm
Package 1 Width 79.0 cm
Package 1 Length 59.0 cm
Package 1 Weight 157.2 kg
Contractual warranty
Warranty 3 years repair or replace (excluding battery) and 2 years for battery
