Call To Order

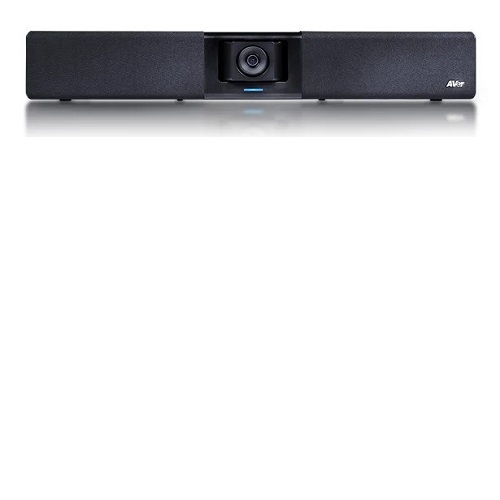

AVer VB342 Pro Enterprise-Grade 4K PTZ Video Bar
NGN1,339,175.00
Availability:
In stock
Out of stock
Weight
5.37 kg
Product Description
AVer VB342 Pro Enterprise-Grade 4K PTZ Video Bar
Description
The VB342 Pro video bar delivers exceptional audio and video quality for enterprises as an all-in-one PTZ Technology device. The VB342 Pro is AVer’s premier, all-in-one video bar for midsize meeting rooms equipped with cutting-edge features like Smart Gallery, SmartSpeaker, Gesture Control and Audio Fencing. The only USB conference camera for video conferencing you will ever need.
Features:
- 4K 3X optical zoom lens with 15X zoom
- Sony 4K True WDR sensor: ultra-crystal-clear image in any lighting
- 10-element beamforming microphone array
- 8 meters (27 ft) pickup range
All-in-One PTZ technology
The VB342 Pro video bar features PTZ technology with an integrated camera, mic, and speaker audio. The 92° FOV lens features 3X optical zoom (15X total zoom) with mechanical pan and tilt to deliver a vivid image so you can see participants in crystal clear clarity.
Advanced AI for smarter meetings
Clearly capture attendees with Smart Gallery, which enables AI technology to crop participant’s faces and make sure everyone is looking great. You can choose between headshot and half body mode to adapt to any meeting situation. Great for collaboration or video calling.
Enhance your meeting with Gesture Control
The camera can easily be controlled and enable AI functions by holding up one finger on either side of your face. Take advantage of built-in AI gesture recognition to operate the camera and eliminates touchpoints to increases meeting safety.
Exceptional audio
Beamforming technology ensures resonant sound from powerful 6Watt Speakers. Beamforming 10-microphone array picks up and reproduces resonant voices from up to 20 feet away. Optimized for HD voice collaboration to reduce meeting fatigue, voices coming from remote locations are supernatural and smooth.
AVer VB342 Pro Technical Specifications
Brand
Aver
Camera
4K 3X optical zoom lens with 15X zoom
Field of view (D/H/V): 92°/84°/53°
Sony 4K True WDR sensor: ultra-crystal-clear image in any lighting
Frame rate: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720,960 x 540, 848 x 480, 800 x 448, 640 x 360 at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480, 480 x 360 at 60, 30, 15fps
Adjustable audio fence: Block outside noise; freely define your meeting area
True WDR up to 120db: Superb backlight compensation technology for optimizing light balance in high-contrast conditions
SmartFrame & SmartSpeaker: automatic tracking and field of view adjustment to fit all participants and focus on the speaker
Presentation tracking: Tracking speaker with both preset area and participant tracking
Smart gallery* function for great visibility
Gesture control for intuitive camera control
Mirror, Flip, AE, white balance: Auto, manual override via PTZApp 2
Minimum focus distance: 80 cm
People counting API: Enterprises and third-party software providers can obtain people-counting data and meeting interval for better understanding of meeting space usage
*Please download PTZApp 2 to set up Smart gallery function
Motorized Pan and Tilt Movement
Pan: total horizontal viewing area 180°
Tilt: total vertical viewing area 105°
10 camera presets (via remote control and IP web page)
Audio
10-element beamforming microphone array
8 meters (27 ft) pickup range
Stereo speaker with output power 12W (6W x 2 pcs)
Volume up to 96 dB SPL at 1/2 m
Echo cancellation
Noise suppression
HDMI
USB Display Adapter: built-in USB 3.1 (Gen 1) to HDMI adapter
Connectivity
12V/5A power adaptor
Mini DIN 6 for RS-232 connection
USB 3.1 Type-C port, backward compatible with USB 2.0
HDMI out connection (USB Display Adapter)
Phone in (3.5 mm audio Jack)/Speaker out for HA system*
Two RJ45 ports (one for Ethernet, one for audio expansion speakerphone/ microphone)
USB 2.0 Type-A*2 : One for Wireless connection**; one for IFP USB Touch back
*Need to set up via PTZApp 2 and purchase an audio-out converter from AVer
**Wireless dongle (optional item) to connect with mobile phone or AVer Fone540
Video Format
YUV, YUY2, M-JPEG
Network video compression formats: H.264, H.265
USB
3.1 Gen 1, backward compatible with USB 2.0
UVC 1.1 (USB Video); UAC 1.0 (USB Audio); UVC 1.5*
*For UVC1.5, it involves in different platform environment and requires extra FW upgrade. Please contact technical supportr more details.
Control
IR remote control
WebUI: IP access via Chrome browser (Chrome 76.x or later; Internet Explorer not supported)
VISCA/Pelco P/Pelco D via RS-232; Visca over IP
UVC/UVA plug-and-play
PTZApp 2
Mount and Security
Camera wall-mount bracket included
TV VESA mount kit (optional)
Foldable TV mount (optional)
Kensington security lock
System Requirements
Software:
Windows 7/10/11
Mac OS X 14.4 or later
Chromebox 3 version 94.0.4606.114 or later
Hardware:
3.2 GHz Intel® Core™ i5-4460 processor
4 GB RAM or more
USB 3.1 port, backward compatible with USB 2.0
Power Supply
AC 100V–240V, 50/60 Hz
Consumption: 12V/5A
Free Applications for Meeting Collaboration
(For Windows® and Mac® computers)
EZManager 2: Camera Central Management Software
Remotely group FW/SW upgrades, control the camera, and manage settings
PTZApp 2: Camera Settings Software
View live video, people counting number, meeting interval information
Enable Skype for Business far-end control
Upgrade firmware automatically or manually
Control the camera
Set parameters and adjust the camera image
Diagnose operating status
Smart Gallery/ Virtual USB streaming/ Preset Link
EZLive: Broadcasting Software
Enjoy multi-camera real-time streaming, annotating, image capturing, and video recording
Environmental data
Operation temperature: 0 ~ 40°C
Operation humidity: 20 ~ 80%
Storage temperature: -20 ~ 60°C
Storage humidity: 20 ~ 80%
Package contents
VB342 Pro unit
Power cable 10 ft (3 m)
USB 2.0 Type-B to Type-A Cable 5m
USB 3.1 Type-A to Type-C adapter
QR code card
Wall-mount bracket and screws
Remote control
Velcro (x2)(pre-install on the device)
Wall-mount drill paper
Optional Accessories
Mini DIN 6 to RS-232 adapter
TV VESA mount for mounting on top of TV and beneath TV
Foldable TV mount
10 m/20 m expansion microphone
10 m/20 m expansion Speakerphone
3 m USB 2.0 extender cable
Wireless dongle (for connecting with mobile phone or AVer Fone540)
Audio-out converter (TRS female to TRRS male)
Dimensions (D x W x H)
Package dimensions: 824 x 190 x 238mm
Package weight: 5.33 kg / 9.3 lbs
Camera: 737.8 x 125.5 x 115.5mm / 3.1 kg
Remote control: 149.72 x 42.3 x 19.3mm / 50g
·
Compatible Applications
· Zoom, Microsoft® Teams, Skype, Skype for Business, Google Meet, RingCentral, BlueJeans , Intel® Unite™, Fuze, Adobe® Connect™, CyberLink U Meeting®, Cisco WebEx® GoToMeeting™, LiveOn, Microsoft® Lync™, TrueConf, V-Cube, Vidyo, vMix, WebRTC, Wirecast, XSplit
*For 4K UHD support, please check system/hardware requirements with your software application provider.
**Specifications may vary depending on countries and are subject to change without notice
