Call To Order

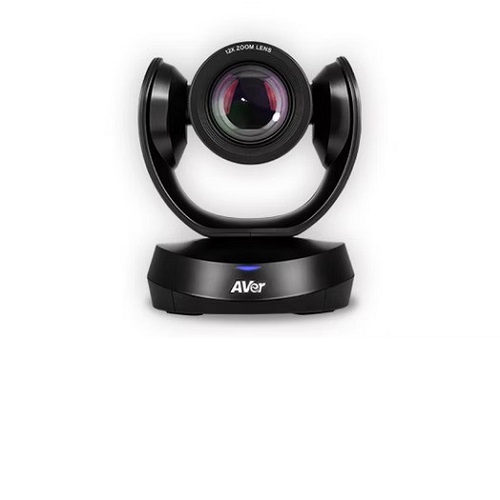

AVer VC520 Pro2 Conference Camera Bundle- Professional Conferencing System for Mid-to-Large Rooms
NGN1,339,175.00
Availability:
In stock
Out of stock
Weight
1.5 kg
Product Description
AVer VC520 Pro2 Conference Camera Bundle- Professional Conferencing System for Mid-to-Large Rooms
Description
The VC520 Pro2 is an expert-level conferencing system. Equipped with an 24X total zoom, advanced AVer SmartFrame, IP video streaming, single USB installation, and an extended speakerphone solution, the VC520 Pro2 brings you an extraordinary video conferencing experience.
VC520 Pro2 Microsoft Teams Rooms Edition
This exclusive version of the VC520 Pro2 speakerphone lets you start meetings instantly with an embedded Microsoft Teams button* and LED status indicator. Just touch the button to enter a meeting and check the call status. Also, you can enjoy an always-clear audio experience via the two expansion microphones that come with this special edition system.
* Only available for the VC520 Pro2 Microsoft Teams Rooms edition, which includes a camera, a speakerphone, and two expansion microphones.
Get Perfect Audio with an Extended Speakerphone
The VC520 Pro2 offers balanced and steady audio performance. As the first conferencing system in the industry to deliver a daisy-chain function, the VC520 Pro2 supports either up to two expansion speakerphones or a full duplex microphone array. The inventive speakerphone makes the VC520 Pro2 a flexible option for fit mid-to-large conference rooms.
Note:
- Expansion speakerphones and microphones cannot be added together.
- The standard speakerphone cannot be applied as an expansion speakerphone.
Support Video and Audio with One USB Cable
Installing the VC520 Pro2 is super easy. All you need to get set up for a call is a single USB cable. This direct connection not only saves time but also keeps your meeting table tidy and organized. Simplify your setup process and decrease installation costs with the VC520 Pro2.
Spot Every Detail with an 24X* Total Zoom
Present products in extreme clarity and demonstrate every detail with an 24X* total zoom. The VC520 Pro2 also maximizes team collaboration with smoother video imaging than ever at up to 1080p, 60fps quality.
*Please use PTZApp 2 to set up 24X zoom.
Improve Meeting Safety & Efficiency with SmartFrame
AVer developed an advanced SmartFrame function that conforms to the latest trends. Equipped with this upgraded auto-framing feature, the VC520 Pro2 can detect and frame meeting participants even when they wear masks or present facial profiles from up to 7 meters away. The VC520 Pro2 cuts through triviality and greatly improves conferencing efficiency.
Livestream Videos Anytime, Anywhere
Share your real-time happenings to viewers over the internet. With H.264 RTSP/RTMP support, the VC520 Pro2 offers stable livestreaming to your favourite channel in 1080p at 60pfs. Deliver first-hand information to your audience and address the latest news whenever and wherever you like.
Brand
Aver
Aver VC520 Pro2 Specifications
Camera
Sony super-low-light 2M pixel sensor for clear and natural imaging in low-light conditions
Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps
SmartFrame for automatic FOV adjustment to fit all participants
Smart Gallery* function offers great visibility for individual participant in the meeting room
Innovative Preset Framing: Follow presenter based on preset areas
True WDR up to 120dB: Superb backlight compensation technology for optimizing light balance in high-contrast conditions
Zoom: 24X* total zoom (12X optical zoom)
Field of view(D/H/V): 84.5°/76°/48°
Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele)
Lens F#: 1.8 (wide) ~ 2.8 (tele)
Mirror, Flip, AE, white balance: auto, manual override via PTZApp 2
Minimum focus distance: 1.5 m
Standard tripod screw holes and Kensington slot
People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage
*Please use PTZApp 2 to set up Smart Gallery and 24X zoom.
Motorized Pan & Tilt Movement
Pan: ±170°
Tilt: +90° (up) -30° (down)
10 camera presets (via remote control)
Fast and quiet pan & tilt movement
Video Format
YUV, YUY2, MJPEG, NV12
Network video compression format: H.264
Network protocols: RTSP, RTMP
Speakerphone
Full duplex microphone array with echo cancellation
Advanced noise suppression
Dual-omnidirectional microphone array
3.5 mm phone-in jack
3.5 mm line out
Speaker: 6W, Adjustable to 90dB SPL at 0.5 m
Touch controls for volume down/up, mute, phone input (Microsoft Teams SKU w/o this function), call, hang-up, and, Teams button*
Bridge phone-in and USB into one call
Security: Kensington slot
*Only available for the VC520 Pro2 Microsoft Teams edition
Audio Format
AAC-LC
Network protocol: RTSP, RTMP
Connectivity
12V/5A power adaptor
Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain)
USB 3.1 Type-B connector
IP (RJ45)
Environmental Data
Operation temperature: 0°C ~ 40°C
Operation humidity: 20% ~ 80%
Storage temperature: -20°C ~ 60°C
Storage humidity: 20% ~ 80%
Dimensions
Package dimensions: 259 x 259 x 349 mm*
Package weight: 5.4 kg*
Camera: 142.7 x 153 x 182 mm/1.45 kg
Speakerphone: 220 x 181.5 x 49.5 mm/0.85 kg
Remote control: 200 x 50 x 21 mm/0.09 kg
* VC520 Pro2 Microsoft Teams edition
Package dimensions: 348 x 251 x 308 mm
Package weight: 6.7kg
Package Contents
VC520 Pro2 Camera
VC520 Pro Speakerphone
Remote control
Power adapter
Power cord (6 ft/1.8 m)
USB2.0 type-B to type-A cable (16.5 ft/5 m)
Camera to Speakerphone Cable (33ft/ 10m)
3.5 mm aux cable (3 ft/0.9 m)
QR code card
Wall-mount bracket
¼” tripod screw
2 Expansion microphone and 5 m Cable*
*Only available for the VC520 Pro2 Microsoft Teams edition
USB
3.1 Gen 1 Type-B, backward compatible with USB 2.0
UVC (USB video class) 1.1
UAC (USB audio class) 1.0
UVC1.5*
*UVC1.5 requires an additional firmware upgrade. Please contact technical support for more details.
Control
IR remote control
VISCA/Pelco-P/Pelco-D via RS232 (128 preset points via VISCA command)
Remote side: VISCA over IP, IP (RJ45)
UVC/UAC plug-and-play
WebUI: Browser IP access via Chrome (does not support Internet Explorer)
PTZApp 2
Mount
Camera wall-mount bracket included
Optional foldable TV mount
Optional ceiling mount
System Requirements
Windows® 7/10/11
Mac OS X 14.4 or higher
Chromebox 3 version 94.0.4606.114 or later
Hardware Specs
3.2 GHz Intel® Core™ i5-4460 Processor or higher
4 GB RAM or more
USB 3.1 port, backward compatible with USB 2.0 port
Web page browser requirement
Chrome: version 76.x or above
Firefox: version 69 or above
IE: Not support
Power Supply
AC 100V ~ 240V, 50/60 Hz
Consumption: 12V, 5A
Free Applications for Meeting Collaboration
(Windows® and Mac)
EZManager 2: Camera Central Management software
Remotely group FW/SW upgrades, control the camera, and configure settings
PTZApp 2
Upgrade firmware automatically or manually
Control camera
Set parameters and adjust camera image
Diagnose operating status
View live video
EZLive
Real-time streaming / annotating / snapshots / video recording
Optional Accessories
Mini DIN8 to D-SUB9 RS232 adapter
Expansion Speakerphone
Expansion Microphone
Foldable TV mount
USB3.1 fiber extender 10m/20m/30m
USB3.1 type-B to type-A cable 3m
Ceiling mount
Compatible Applications
Zoom, Microsoft® Teams, Skype for Business, Skype, Google Meet, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Vidyo, Adobe® Connect™, Cisco Webex®, Fuze, GoToMeeting™, Microsoft® Lync™, vMix, WebRTC, Wirecast, XSplit
