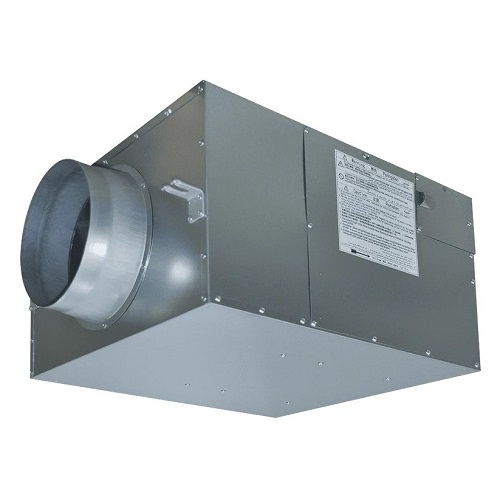

PANASONIC CABINENT FAN FV-18NF3NALHM
NGN233,123.31
Availability:
In stock
Out of stock
SKU
DELUXE-V1608823414
Brand
Panasonic
Category
Home & Kitchen
Home Appliances
Fans
Add to Wishlist
Compare
Weight
10 kg

Product Description

  • Low noise series
  • Single phase
  • Exhaust type
  • Ceiling mounting
  • 2-speed selectable
  • Air volume = 770m3/h
  • Exhaust type
  • The fan shall be suitable for ceiling mounting
  • Long life condenser motor with thermo cut-off
  • High performance 'Twin Flow Fan' employed for powerful airflow and high static pressure
  • Newly designed casing with taper scroll minimizes turbulence inside the casing
  • Noise absorption material adopted for low noise operation
  • Slim and compact design allow installation at narrow ceiling space
  • Embedded terminal box with metal terminal cover enhances durability and safety
  • Able to install upside down for different location of inspection opening
Voltage [V]



220 230 240



Frequency [Hz]



50 60
Air Volume - Hi [CMH]770
Consumption - Hi [W]91
Noise - Hi [dB(A)]31
RPM - Hi [min-1]1190
Weight [kg]10

See All Specs

FV-18NF3 Dimension


HideAir Volume



[CFM]
453
365



[CMH]
770
620
HideConsumption [W]
91
80
HideNoise [dB(A)]
31
29
HideRPM [min-1]
1190
1000
HideDuct Size [mm]
Ø200
HideImpeller Diameter [cm]
158
HideWeight [kg]
10
