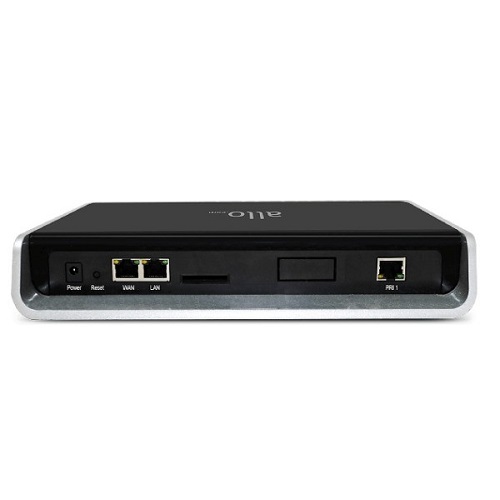

Allo E1/T1 PRI Gateway - 1E1
Allo E1/T1 PRI Gateway - 1E1
NGN387,915.50
Availability:
In stock
Out of stock
SKU
DELUXE-V1517562554
Brand
Category
Weight
1 kg

Product Description

Supports up to 30 simultaneous calls, has onboard DSP for Line Echo Cancellation and all codec transcoding licenses are included.
Includes on board clock for synchronization. This unit will convert PRI lines to IP and vice versa. Can also handle fax through the optional FXS ports. A new PHP based user interface will allow easy configuration and display status of spans and channels.
Key Features
E1/T1 PRI gateway; up to 2 SPAN interface
Flexible call routing
Transcoding (Voice coding G.711 A-law/u-law, G.722 G.729AB) licenses included
Fax pass-through
PHP based web interface
128 ms DSP based echo cancellation
Up to 30 simultaneous VoIP to ISDN PRI calls
1 T1/E1/J1 PRI port with programmable NET/CPE modes
Support SIP v2 (RFC 3261 complaint)
Register with up to 5 SIP service providers
ISDN network clock synchronization for error-free communication
Interoperable with all the major-brand soft switches and IP-PBXs
PIN authentication for accessing trunks to prevent unauthorized usage
Call detail records
Web-based configuration and management
Target Applications
Voice-over Internet Protocol (VoIP) Services
Legacy PBX Integration to IPPBX
IVR Trees
Calling Card Platforms

Technical Specifications
ISDN Capable of supporting 2 ports of E1/T1/J1 PRI interface
Signaling Support:
o T1 - NI1, NI2, AT&T 4ESS, Lucent 5ESS , DMS100, ISO QSIG
o E1 - ETSI/Euro–ISDN, ISO QSIG
Configurable as network side or terminal side.
VOIP Support SIP v2 (SIP Info, Update, PRACK, Refer)
B2BUA
SIP Registrar
SUPPORT FOLLOWING VOICE CODECS G.711 PCM @ 64 kbps (A-law and μ-law)
G.729AB
G.722
DTMF SUPPORT In-band, DTMF relay (RFC 2833) Out-of-band, INFO method
ECHO CANCELLATION Up to 128msec echo tail length
FAX Fax pass-through
FEATURES Call routing:
o Flexible dial plan & number manipulation
o Time-dependent routing
o Multilevel alternative routing (Intelligent multiple trunk routings)
o Least cost routing (LCR)
Support for calls to toll free, local and special service numbers (emergency services, etc.)
Early media support
STUN support
Call detail records (CDRs)
MANAGEMENT WEB based configuration utility
Remote firmware upgrade
Built-in diagnostic tools (trace, debug)
CONNECTIVITY DHCP client
DNS
SNMP client
HTTP web server
NAT traversal (both manually and STUN)


Physical & Environmental
OPERATION TEMPERATURE 10°C to 40°C (50 F to 104 F)
STORAGE TEMPERATURE 0°C to 50°C (32°F to 122°F)
OPERATING HUMIDITY 10% to 90%, Non-condensing
STORAGE HUMIDITY 5% to 95%, Non-condensing
DIMENSIONS 25cm x 22cm x 4.3cm
WEIGHT 1.5 kg
POWER INPUT 12V DC / 3.5 A
