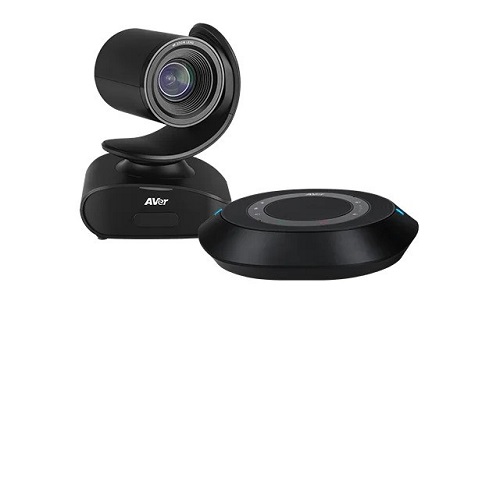

AVer VC540 4K Conference Camera with Bluetooth® Speakerphone for Medium-to-Large Rooms

NGN1,677,428.00

Availability:

In stock

Out of stock

SKU

deluxe----1657113452

Brand

Aver

Product Description

The AVer VC540 pairs an upgraded speakerphone with a 16X total zoom camera to make remote meetings feel like in-person interactions. With 4K camera quality and IP-based management features for the speakerphone, the VC540 is the professional conferencing system that truly meets your enterprise needs.

Bluetooth Makes Things Simple

Get rid of complicated cables. The upgraded speakerphone’s Bluetooth capability makes connecting to tablets and mobile phones easy, and it keeps your conference room clean so you can make a strong impression.

AVer SmartFrame Gets Your Meetings Started Fast

The VC540 delivers the efficiency of AVer SmartFrame to your meeting room. SmartFrame maximizes the viewable field with an auto-framing solution that quickly and effortlessly puts everyone in your meeting into frame.

Professional Clarity with a 16X total Zoom

Enhance your communication by showing every detail precisely and smoothly. The VC540 is embedded with a 16X total zoom and multi-coated autofocus optics to present complex product details in crystal-clear quality.

Cutting-Edge 4K Ultra HD

The VC540 uses a Sony™ high-quality sensor and multi-lens glass to provide the sharpest video possible. Also, an advanced image-processing engine allows you to display natural, vividly colored details even in challenging lighting conditions and on very low-latency networks.

Camera

- Ultra-crystal-clear image support up to 4K
- Frame rate: 4K 30fps, 1080p , 720p , 640×480, 320×240 at 60, 30, 15fps
- SmartFrame: automatic FOV adjustment to fit all participants
- 16X zoom
- Autofocus: minimum working distance 1 meter
- 86° horizontal field of view
- Backlight compensation and 2D noise reduction technology for optimizing light balance in varying conditions
- Standard tripod screw holes
- Analytics API: enterprises and third-party software providers can obtain people-counting data to better understand meeting-space usage

Speakerphone

- Bluetooth / USB Wired
- Full-duplex microphone array with echo cancellation
- Advanced noise suppression
- 2-microphone array
- 3.5 mm phone-in Jack
- 3.5 mm line out
- Speaker volume: adjustable to 90 dB SPL at 0.5 m
- Touch controls for volume down/up, mute, phone input, call, and hang up
- Can bridge phone-in and USB into one call
- Security: Kensington slot

Motorized Pan & Tilt Movement

- Pan: ±160°
- Tilt: +90° (up) -30° (down)
- 10 camera presets (via remote control)
- Fast and quiet pan & tilt movement

Connectivity

- Mini DIN 6 for RS232 connector for camera
- USB Type-C connector for camera
- Micro USB connector for speakerphone
- IP (RJ45) connector for speakerphone
- Bluetooth for speakerphone

Video Format

- YUV, MJPEG

USB

- 2.0, 3.1 Gen1
- UVC (USB Video Class) 1.1
- UAC (USB Audio Class) 1.0

Control

- IR remote control
- VISCA/pelco and P/pelco D via RS232
- UVC/plug-and-play
- PTZApp

Optional Accessories

- Mini DIN 6 to RS232 adapter for camera
- Expansion Speakerphone (10 m cable included, daisy-chain up to three speakerphones)
- Expansion Pair Microphone (Two 5 m cables included, daisy-chain up to four microphones)
- USB 2.0 type-C to type-A Cable (16 ft)

Security and Mount
- Camera mount included for wall or ceiling
- Kensington slot
System Requirements*
- Windows® 7/10 or later
- Mac OS X v10.13 or later
- Google Chromebook™ version 76.0.3809.102 or later
- Android™ 6 or later

Hardware Specifications*

EZLive

PTZApp

- Zoom, Microsoft® Teams, Skype for Business, Skype, Google Meet, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting ®, TrueConf, Adobe® Connect™, Cisco Webex®, Fuze, GoToMeeting™, Vidyo, vMix, WebRTC, Wirecast, XSplit
Compatible Applications
- CAM540 Camera
- Speakerphone
- Remote control
- Power adapter x 2
- Power cord (6 ft)
- USB 3.1 type-C to type-A Cable (6 ft)
- Micro USB 2.0 to Type-A cable (16 ft)
- 3.5 mm aux cable (3 ft)
- Warranty card
- Quick Start Guide
- Metal mount, tripod screws
- Batteries
Package Contents
- Package dimensions: 259 x 259 x 349 mm
- Package weight: 4.6 kg
- Camera: 130.7 x 97.8 x 171.1 mm
- Speakerphone: 220 x 181.5 x 49.5 mm
- Remote control: 200 x 50 x 21 mm
Dimensions
- Operation temperature: 0°C ~ 40°C
- Operation humidity: 20% ~ 80%
- Storage temperature: -20°C ~ 60°C
- Storage humidity: 20% ~ 80%
Environmental Data
- Real-time streaming / annotating / snapshots /video recording
- Upgrade firmware automatically or manually
- Control camera
- Set parameters and adjust camera image
- Diagnose operating status
- View live video
Free Applications for Meeting Collaboration (for Windows® and Mac Devices)
- Processor: 3.2 GHz Intel® Core™i5-4460 or later
- 4 GB RAM
- USB 3.1 port, backward compatible with USB 2.0 port
