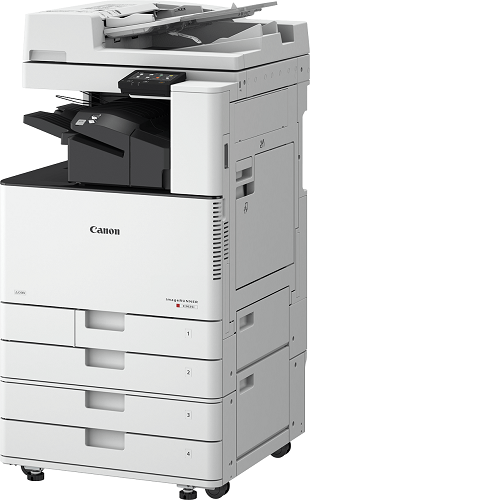

Canon imageRUNNER C3025i (LC)

Colour Laser Multifunctional

Print, Copy, Scan, Send and Optional Fax

Canon Dual Custom Processor (Shared) 800 MHz

12.7 cm (5 inch) TFT LCD WVGA Colour Touch panel

Standard: 2.0GB RAM

NETWORK

Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n);

Optional: NFC



OTHERS

Standard: USB 2.0 (Host) x2, USB 2.0 (Device) x1;

Optional: Copy Control Interface

TCP/IP, Frame type: Ethernet II

Print applications: LPD/Raw/IPP/IPPS/FTP/WSD/Mopria/GCP/AirPrint/Windows10 Mobile Print

2 x 550-sheet cassettes (80gsm)

100-sheet multi-purpose tray (80gsm)

2 x 550-sheet cassettes (CASSETTE FEEDING UNIT-AP1)

2,300 sheets (80 gsm)

Without Finisher: 250 sheets (A4, 80 gsm)

With Inner Finisher: Max. 600 sheets (A4, 80 gsm)

Collate, Group

With Inner Shift Sorter: Collate, Group, Offset

With Inner Finisher: Collate, Group, Offset, Staple, Staple-Free Staple, Staple on Demand

Cassettes 1/2:

Thin paper, Plain paper, Thick paper, Colour paper, Recycled paper, Pre-punched paper,

Transparency, Bond paper, Envelope



Multi-purpose tray:

Thin paper, Plain paper, Thick paper, Colour paper, Recycled paper, Pre-punched paper,

Transparency, Bond paper, Envelope, Label, Tracing paper, Coated paper



Cassette 3/4 (CASSETTE FEEDING UNIT-AP1):

Thin paper, Plain paper, Thick paper, Colour paper, Recycled paper, Pre-punched paper,

Transparency, Bond paper

Cassette 1:

Standard size: A4, B5, A5R

Envelopes: No.10 (COM10), ISO-C5, DL

Custom Size: 139.7 mm x 182 mm to 297 mm x 215.9 mm



Cassette 2:

Standard size: A3, B4, A4, B5, A4R, A5R

Envelopes: No.10 (COM10), Monarch, DL

Custom Size: 139.7 mm x 182 mm to 304.8 x 457.2 mm



Multi-purpose tray:

Standard size: A3, B4, A4, A4R, B5R, B5, A5, A5R, SRA3

Custom size: 98.4 mm x 139.7 mm to 320 mm x 457.2 mm

Envelopes: No.10 (COM10), Monarch, ISO-C5, DL



CASSETTE FEEDING UNIT-AP1:

A3, B4, A4, A4R, B5R, B5, A5R

Custom Size: 139.7 mm x 182 mm to 304.8 mm x 457.2 mm

Cassette 1/2:

52 to 220 gsm



Multi-purpose tray:

52 to 300 gsm



Duplex:

52 to 220 gsm



Cassette Feeding Unit-AP1:

52 to 220 gsm

From Power On: 30 Seconds or Less1

From Sleep Mode: 10 Seconds or Less

880 mm x 565 mm x 664 mm

978 mm x 1,117 mm (Basic: RADF + Multi-purpose tray extension extended + Cassette open)

1,110 mm x 1,117 mm (Fully Configured: RADF +INNER FINISHER-K1 + Multi-purpose tray extension extended + Cassette open)

Approx. 67.6 kg including toner

Colour Laser Beam Printing

25 ppm (A4), 15 ppm (A3), 20 ppm (A4R), 25 ppm (A5R)

600dpi×600dpi, 1200dpi×1200dpi

UFR II, PCL 6 (Standard), Genuine Adobe PostScript Level 3 (Optional)

Automatic (Standard)

Direct printing available from USB memory key

Supported file types: TIFF, JPEG, PDF and XPS*

*XPS is supported from LPR command print.

A range of software is available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements.

Please contact your sales representative for further information

PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Barcode fonts*

PS fonts: 136 Roman

*Requires optional BARCODE PRINTING KIT-D1

UFRII: Windows Vista/Server 2008/Windows 7/Server 2008 R2/Windows 8/Server 2012/Windows 8.1/Server 2012 R2/Windows 10/Server 2016, MAC OS X (10.7.5 or later), Linux

PCL: Windows Vista/Server 2008/Windows 7/Server 2008 R2/Windows 8/Server 2012/Windows 8.1/Server 2012 R2/Windows 10/Server 2016

PS:Windows Vista/Server 2008/Windows 7/Server 2008 R2/Windows 8/Server 2012/Windows 8.1/Server 2012 R2/Windows 10/Server 2016, MAC OS X (10.7.5 or later)

PPD: MAC OS 9.1 or later, MAC OS X (10.3.9 or later), Windows Vista/Windows 7/Windows 8/Windows10

SAP Device Types are available via the SAP Market Place.

Please refer to http://www.canon-europe.com/support/business-product-support for availability of print solutions for other operating systems and environments including AS/400, UNIX, Linux and Citrix.

Some of these solutions are chargeable.

25 ppm (A4), 15 ppm (A3), 20 ppm (A4R), 25 ppm (A5R)

Approx. 5.9/8.2 seconds or less

Reading: 600 dpi x 600 dpi

Printing: 600 dpi x 600 dpi

Up to 999 copies

Automatic or Manual (6 Levels)

25% - 400% (1% Increments)

25%, 50%, 71%, 100%

141%, 200%, 400%

Reader and Duplexing Automatic Document Feeder

A3, B4, A4, A4R, B5, B5R, A5, A5R, B6

Colour Network ScanGear2. For both TWAIN and WIA

Supported OS: Windows Vista/7/8/8.1/10

204 x 196 dpi, 300 x 300 dpi

Platen media size: Sheet, Book, 3-Dimensional Objects (Up to 2kg)



Document feeder Media size : A3, B4, A4R, A4, B5R, B5, A5R, A5, B6

Document Feeder media weight:

1-sided scanning: 38 to 128 gsm/64 to 128 gsm (BW/CL)

2-sided scanning: 50 to 128 gsm/64 to 128 gsm (BW/CL)

Send functionality available on all models

Scan to USB Memory Key:  Available on all models

TWAIN/WIA Pull scanning available on all models

Single-sided Scanning (BW): 55 ipm (300pi) / 30 ipm (600 dpi)

Single-sided Scanning (Colour): 55 ipm (300pi) / 30 ipm (600 dpi)

Double-sided Scanning (BW): 27.5 ipm (300pi) / 15 ipm (600 dpi)

Double-sided Scanning (Colour): 27.5 ipm (300pi) / 15 ipm (600 dpi)

100 Sheets (80 gsm)

2-sided to 2-sided (Automatic)

Standard

E-mail/Internet FAX (SMTP), SMB, FTP, Super G3 FAX(Optional)

Auto Colour Select (Full Colour, Grayscale),

Auto Colour Select (Full Colour/ Black-and-White)

Full Colour, Grayscale, and Black-and-White

LDAP (50)/Local (300)/Speed dial (281)

204 x 196 dpi, 300 x 300 dpi

File: FTP, SMB v3.0

E-mail/I-Fax: SMTP, POP3, I-Fax (Simple)

Standard: TIFF, JPEG, PDF(Compact, Searchable)

Optional: PDF(Encrypted, Digital Signature)

Optional

1

Super G3: 33.6 kbps

G3: 14.4 kbps

MH, MR, MMR, JBIG

400 x 400 dpi, 200 x 400 dpi, 200 x 200 dpi, 200 x 100 dpi

A5* and A5R* to A3

*Sent as A4

Up to 512 pages

Max. 281

Max. 299 dials

Max. 310 addresses

Yes

Standard: Department ID Authentication

Universal Login Manager

Standard: IP/Mac Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP

Standard: Secure Print

Optional: Encrypted PDF, Device signatures

Temperature: 10 to 30 ºC (50 to 86 ºF)

Humidity: 20 to 80 % RH (no condensation)

220-240 V (±10 %), 50/60 Hz (±2 Hz), 4.0 Amp

Maximum: Approx. 1.5 kW

Printing: Approx. 407.8 Wh or less*

Standby: Approx. 33.6 Wh

Sleep mode: Approx. 2 W

Plugin Off: Approx. 0.1 W*

Typical Electricity Consumption (TEC) rating2: 0.9 kWh



Lot 26  (http://www.canon-europe.com/For_Work/Lot26/index.aspx)



*Data taken from Blue Angel Certification User Information

Sound Power Level (LwAd)3

Active(BW): 64 dB or Less*, Active(CL): 63.9 dB or Less*, Standby: No noise**



Sound Pressure (LpAm)4

Bystander’s position:

Active(BW): 47 dB or Less, Active(CL): 48dB or Less, Standby: 4.7db**



*Data taken from Blue Angel Certification User Information

**Data taken from ECO declaration

ENERGY STAR® Qualified

Ecomark

Green purchase

Blue Angel

iW Management Console:

Server-based software for centralised management of a fleet of devices (includes monitoring or consumables, status monitoring and alerts, distribution of address books, configuration settings, firmware and MEAP applications, meter capture and reporting, driver and resource management)

eMaintenance:

Compatible with eMaintenance services via embedded RDS (Enables meter capture, automatic consumables management, remote diagnostics and reporting for service providers to offer efficient, fast and proactive maintenance)

ScanGear MF:

TWAIN-compliant scanner driver that enables computers on a network to use the pull scan functionality of the device

Canon Driver Configuration Tool:

A utility for changing the factory default settings of Canon print drivers (Available via service only)

iW DESKTOP (OPTIONAL)

Powerful print publishing software which easily combines documents from different sources and file formats, applies finishing with preview and templates to create professional looking documents. Includes PDF creation, annotation and compression capabilities for simple digital workflows such as proofing and authorisation

C-EXV 54 TONER BK/C/M/Y

C-EXV 54 TONER BK: 15,500 pages

C-EXV 54 TONER C/M/Y: 8,500 pages

Name: CASSETTE FEEDING UNIT-AP1

Paper Size: A3, B4, A4, A4R, B5, B5R, A5R

Custom Size: 139.7 mm x 182 mm to 304.8 mm x 457.2 mm

Paper Weight: 52 to 220 gsm

Paper Capacity: 2 x 550 sheets (80 gsm)

Dimensions (W x D x H): 565 mm x 615 mm x 248 mm

Weight: Approx. 16 kg

Name: INNER FINISHER-K1 (Internal)

Number of Trays: 2

Tray A (Upper) Capacity: A4, B5, A5, A5R 100 sheets, A3, B4, A4R, B5R, SRA3 50 sheets

Tray B (Lower) Capacity: A4, B5, A5, A5R 500 sheets, A3, B4, A4R, B5R, SRA3 250 sheets

Paper Weight: 52 to 300 gsm

Staple Position: Corner, Double

Staple Capacity: Corner and double stapling

A4/B5: 50 sheets (52 to 90 gsm)

A3/B4/A4R: 30 sheets (52 to 90 gsm)

Eco Staple:

A3/A4/B4/B5: 5 sheets (52 to 64 gsm)

                     4 sheets (65 to 81.4 gsm)

                     3 sheets (81.5 to 105 gsm)

Staple On Demand:

40 sheets (80 gsm)

Dimensions (W x D x H): 604 mm × 525 mm × 188 mm  *With the tray extension extended.

Weight: Approx. 8 kg

INNER 2WAY TRAY-J1: Allows the separation of copies, prints and faxes. Adds a second internal output tray to give a combined output capacity of 350 sheets (upper tray 100 sheets/lower tray 250 sheets).

INNER SHIFT SORTER-A1: Each printout group is shifted in alternating layers. Output capacity of 250 sheets.

COPY TRAY-J2: Provides a simple tray for basic output needs.

Capacity: 100 sheets (80 gsm)

Dimensions (W x D x H): 444 mm × 373 mm × 176 mm (when the extension tray is extended) (When attached with the device)

Weight: Approx. 473 g

MiCARDPLUS FOR ULM - A proximity card reader for card based user authentication, supporting multiple card technologies (HID, HiTag, Casi Rusco, Indala and MiFare etc.). Integrates with Universal Login Manager and uniFLOW



COPY CARD READER-F1 - Magnetic physical card access system. (Integrates with Department ID, not for use with uniFLOW)



COPY CARD READER ATTACHMENT-H2 - Attachment kit for Copy Card Reader-F1 only.

UTILITY TRAY-B1 - Additional tray to hold an external USB keyboard.

SEND PDF SECURITY FEATURE SET-E1 - Enables the user to send Encrypted PDFs as well as add digital device signatures to a PDF which help identify the device from which the document was sent through invisible and/or visible digital signatures.

BARCODE PRINTING KIT-D1 - Provides the ability to print 1D and 2D barcodes on output using jet caps technology.

COPY CONTROL INTERFACE KIT-D1: Allows connection (CCVI I/F) between 3rd party copy control terminal and Canon’s iR-ADV range for cost recovery use.



NFC KIT-D1 - NFC kit is an option which enables the communication between the main unit and other devices using NFC.

SUPER G3 FAX BOARD-AV1 - Adds fax functionality.

ADF ACCESS HANDLE-A1 - Attaches to the document feeder, making access easier for seated users

STAPLE-P1 - For stapling (2 x 5,000 pcs)
